Solar inverters

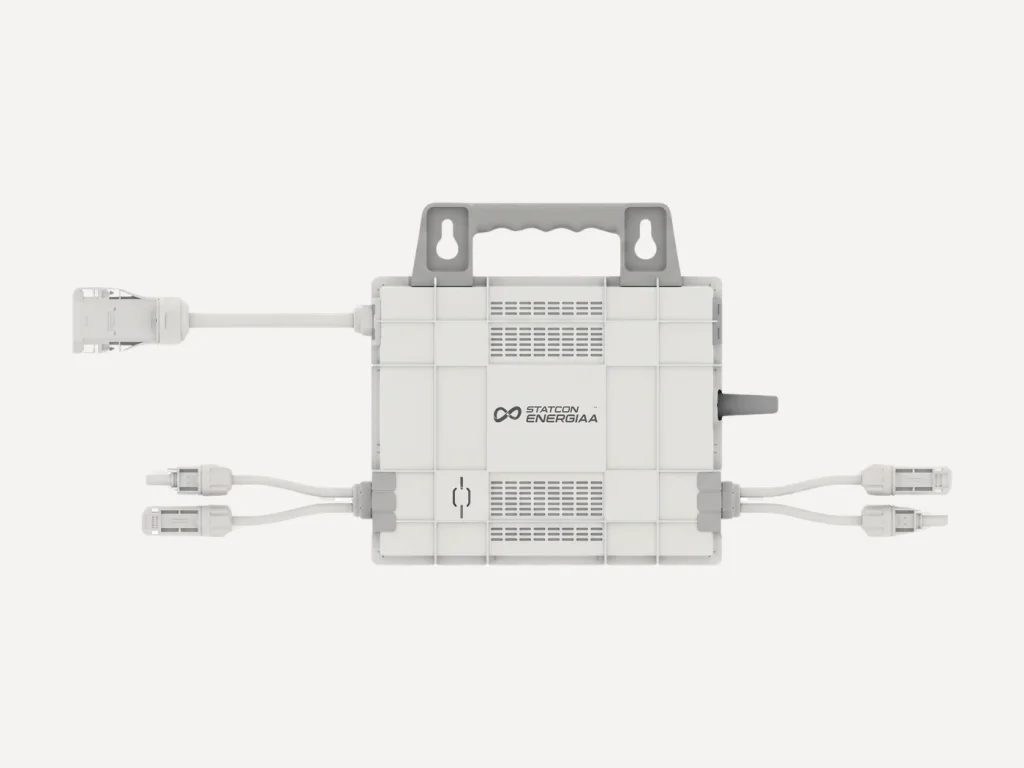

Micro inverters (ENERGIAA-M series)
Module-level micro inverters that turn panel DC into grid-ready single-phase AC, 300 W to 1,100 W, with up to two independent MPPTs in one IP67 unit.
Talk to sales: Solar sales +91 84480 81123
Overview
What it does
Statcon Energiaa micro inverters turn module-level solar DC into grid-ready single-phase AC. Two independent MPPTs in one outdoor-rated unit draw the most from each panel pair, for balcony and rooftop PV.
The series runs from 300 W to 1,100 W across seven models. The 300, 400 and 500 W units carry a single tracker; from 600 W upwards each unit carries two independent trackers, so a pair of panels is tracked separately. The topology is an isolated high-frequency transformer, cooled by natural convection with no fan.
Built-in 2.4 GHz WiFi and Bluetooth feed an app and LED indicators for live monitoring, with RS-485 and 4G available. MC4 connectors on the DC side and a quick-plug connector on the AC side keep balcony installations simple, and rapid shutdown is built in.
The seven models
| Model | AC power | MPP trackers | Max input current per tracker | Max output current | Recommended max DC input |
|---|---|---|---|---|---|
| ENERGIAA-M 300W-1P | 300 W / 300 VA | 1 | 12 A | 1.3 A | 450 W |
| ENERGIAA-M 400W-1P | 400 W / 400 VA | 1 | 16 A | 1.75 A | 550 W |
| ENERGIAA-M 500W-1P | 500 W / 500 VA | 1 | 16 A | 2.18 A | 650 W |
| ENERGIAA-M 600W-1P | 600 W / 600 VA | 2 | 12 A + 12 A | 2.62 A | 450 W × 2 |
| ENERGIAA-M 800W-1P | 800 W / 800 VA | 2 | 20 A + 20 A | 3.48 A | 550 W × 2 |
| ENERGIAA-M 1000W-1P | 1,000 W / 1,000 VA | 2 | 20 A + 20 A | 4.35 A | 650 W × 2 |
| ENERGIAA-M 1100W-1P | 1,100 W / 1,100 VA | 2 | 20 A + 20 A | 4.8 A | 750 W × 2 |
Why engineers choose it
- Output power up to 1,100 VA across the series
- Two independent MPPTs for module-level tracking
- Maximum PV input current up to 20 A
- Built-in WiFi and Bluetooth for live monitoring
- Rapid shutdown for added safety
- Quick-plug installation for balcony PV systems
- Fanless, natural convection cooling
- IP67 rated for outdoor installation
